Maximum Rider Weight - 220 lbs.
2

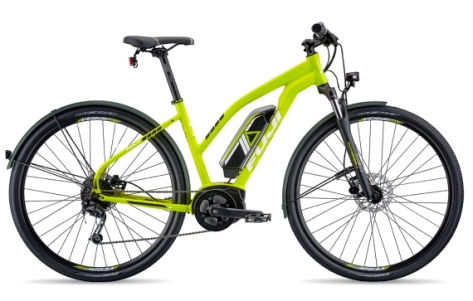

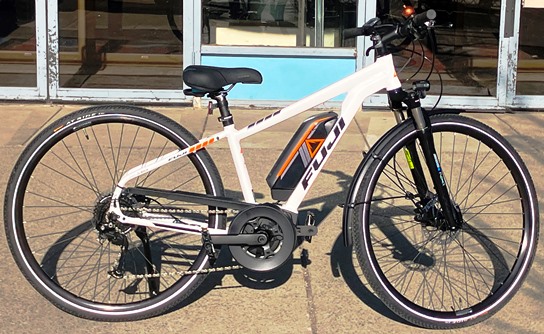

DRIVE UNIT: Bosch Active Plus mid-motor, 250W rated power
BATTERY: Bosch Power Pack 400Wh
DISPLAY: Bosch Purion
WEIGHT: 20.58kg / 45.36lbs
FRAME: Fuji A2-SL custom-butted alloy, integrated head tube, semi-integrated battery
FORK: Suntour NEX disc, lockout, 700C coil, 63 mm travel with lockout
CRANKSET: 42T sprocket, w/chainring guard
R DERAILLEUR: Deore 9-speed
SHIFTERS: Shimano Altus 9-speed
CASSETTE: 9-speed, 11-34T
WHEELSET: Fuji disc 6 bolts QR front, Fuji disc 6 bolts QR, 9 speed rear, 36H hubs, Vera DPD22 aluminum double-Wall SSE rims
TIRES: 700 x 38
BRAKESET: hydraulic disc, 160mm rotors
HEADSET: 1 1/8", zero stack, sealed
SEATPOST: 30.9
Size: Small, 15"
Size: Small/16.5

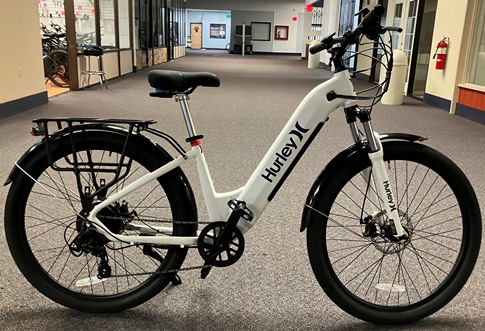

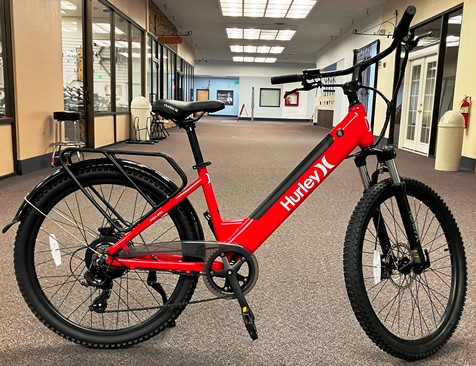

Necco 500-watt rear drive / Veken 48 Volt battery / 10.4 AH
Level: Level 2- Ride Assist & Throttle
Max Speed: 20 mph
Max Distance: 40 miles per charge
Frame: Aluminum alloy, internal downtube battery
Fork: Front suspension with 100mm of travel
Drivetrain: Shimano Tourney 7-Speed
Wheels: 26” 36 Alloy double wall, stainless spokes, brass nipples
Tires: Wanda 26 x 2.35 E-Bike
Brakes: Alloy disc brakes with Power Off brake lever
Bar & Stem: Alloy adjustable stem, E XT 110, R IS E: 0-60°, Height: 41mm
Extras: Rear rack, rear fender, front & rear lights, kickstand, chainguard

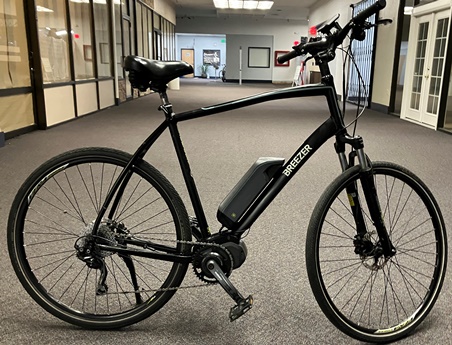

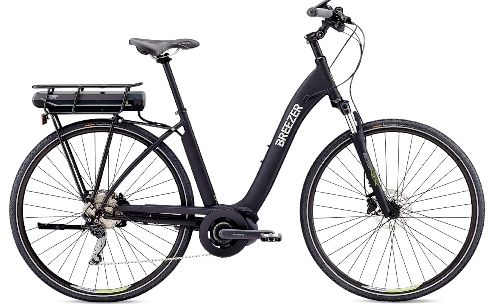

DRIVE UNIT: New Shimano STePS mid-motor, 250W rated power, 20mph maximum assist
BATTERY: Shimano STePS E8014, 418Wh w/ charger
DISPLAY: Shimano STePS E6010, center mounted
1
FRAME: Breezer hydroformed aluminum FORK: Suntour 700C coil, 63 mm travel CRANKSET: 38T, w/ full chainguard
R DERAILLEUR: Shimano Alivio T4000
SHIFTERS: Shimano Altus M2000
CASSETTE: 11-36T, 9-speed
WHEELSET: Shimano TX505 CL disc QR front, Shimano TX505 CL disc QR rear, 36H hubs, 14g stainless stell spokes, Vera Corsa DPD17 aluminum double-wall rims with stainless eyelets
TIRES: Schwalbe Delta Cruiser Plus 47-622, puncture guard, reflective stripe
BRAKESET: Hydraulic disc, 160 mm rotors.
HEADSET: FSA 1 1/8", caged bearings
STEM: 3D-Forged 6061 aluminum, 0-60° adjustable rise, 31.8mm clamp
SEATPOST: 27.2mm diameter
Maximum Rider Weight - 240 lbs.

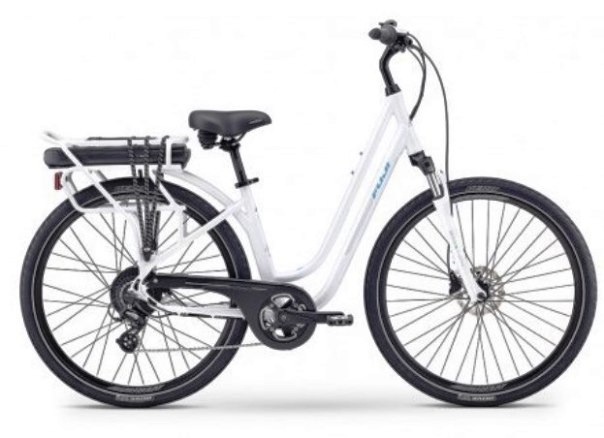

FRAME: Fuji A1-SL Custom-Butted Alloy, integrated head tube, rear rack mounted battery, fender mounts
DRIVE UNIT: Bafang H400B rear hub motor, 250W rated power, 20mph maximum assist
BATTERY: Fuji Power Pack 468Wh w/ 2A charger
DISPLAY: Bafang 5 mode LED display w/ walk assist
2 1
FORK: Suntour NEX disc, 700C coil, travel 63mm, steel steerer CRANKSET: Fuji 44T chainring, w/ chainring guard
REAR DERAILLEUR: Shimano Altus M310
SHIFTERS: Shimano Tourney RS45 Revoshifter
CASSETTE: Shimano Acera HG31, 11-32T, 8-speed
WHEELSET: Shimano TX505 CL disc, 36H, front, Bafang rear motor bub, 6 bolt disc, 36H, stainless steel spokes, Vera Terra DPD22 aluminum double wall rims with stainless eyelets
TIRES: Vera Rove 700 x 42c, E Line 50 w/ Phalanx puncture protection, reflective stripe
BRAKESET: Shimano MT200 hydraulic disc, rotors: 160mm front, 160mm rear
BRAKE LEVERS: Shimano MT200 hydraulic 3 finger lever
HEADSET: 1 1/8" threaded steel
HANDLEBAR: Alloy 25mm rise, 9° sweep, 25.4mm clamp
REAR CARRIER: Integrated alloy carrier for rack battery

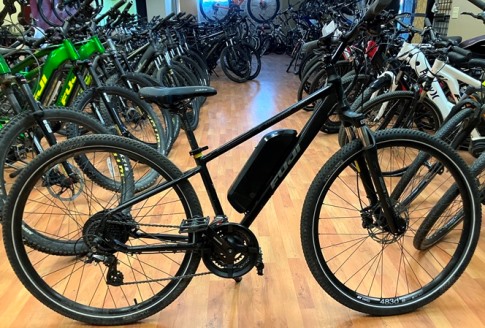

This bike is also featured on the 27-5 Electric Mountain Bike Page. Because of its 48-38-28 crankset, It is great for commuting and also for light mountain biking.
3 hours - $45. Extra hours: $4, 3, 2, 1. . . . $75 – 24 hrs (charger included). Week - $350.
Maximum Rider Weight - 260 lbs WEIGHT: 50 lbs.
3 3 3 3
BATTERY: Fuji Power Pack 417Wh w/ 2A charger
FRAME: Fuji A1-SL Alloy. 1 1/8" head tube.
FORK: 27.5, travel 100mm
CRANKSET: 48/38/28T, w/ chainring guard
BOTTOM BRACKET: Bafang cadence sensor bottom bracket
F DERAILLEUR: Shimano Tourney TY710
R DERAILLEUR: Shimano Altus M310
SHIFTERS: Shimano Altus M310, Rapid Fire
CASSETTE: 11-32T, 8-speed
WHEELSET: F: Shimano TX505 CL disc, 36H. R: Bafang motor hub, 36H DW.
HEADSET: 1 1/8", Zero Stack, caged bearings BRAKESET: Hydraulic disc, rotors: 180mm front, 160mm rear
TIRES: Vera Eos, 27.5" x 2.2", 30tpi

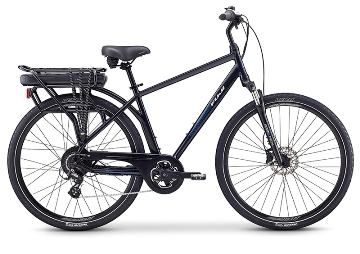

Maximum Rider Weight - 240 lbs. DRIVE UNIT: Bafang H400B rear hub motor, 250W rated power, 20mph maximum assist
CRANKSET: Fuji 44T chainring, w/ chainring guard
23
FRAME: Fuji A1-SL Custom-Butted Alloy, integrated head tube, rear rack mounted battery, fender mounts FORK: Suntour NEX disc, 700C coil, travel 63mm, steel steerer
BOTTOM BRACKET: Bafang sealed cartridge BB with cadence sensor
WHEELSET: Shimano TX505 CL disc, 36H, front, Bafang rear motor bub, 6 bolt disc, 36H, stainless steel spokes, Vera Terra DPD22 aluminum double wall rims
BRAKESET: hydraulic disc, 160 mm rotors.
BRAKE LEVERS: hydraulic
STEM: Classic alloy quill stem
Picture Pending
SIZE: 62
FRAME: Breezer hydroformed aluminum, semi-integrated STePS battery design, Shimano STePS motor interface, Breeze Sliding & Split dropouts
FORK: Suntour NEX LO 700C coil, travel 63mm, hyraulic lockout, steel steerer
CRANKSET: Shimano STePS, 38T, w/ full chainguard
REAR DERAILLEUR: Shimano Alivio T4000
CASSETTE: Shimano Altus HG201, 11-36T, 10--speed
BRAKE LEVERS: Shimano MT200 hydraulic disc 3 finger lever
https://surlybikes.com/bikes/big_easy VIDEO: https://www.youtube.com/watch?v=B3at3h-yebc ---------------------------------- 3 hours - $75, additional hours - $4, $3, $2, $1 . . . . 24 hours - $125. Week - $700.. Maximum Rider Weight: 285 lbs.
Range: Approximately 60 miles Frameset /Frame: Surly Big Easy Frame for Bosch Mid Drive. Surly 4130 Chromoly Steel.
Fork: Surly Big Easy Fork. 4130 Chromoly Steel.
Drivetrain/Drive Unit: Bosch Performance CX [20m/h]
Batteries: Two Bosch PowerPack 500
Display: Bosch Purion
Crankset: Miranda for Big Easy
Rear Derailleur: SRAM GX
Cassette / Cog: SunRace CSMS7 11-42
Headset: Cane Creek ViscoSet [tuned for Surly Big Easy] upper. 40 series lower
Rear Shifter: SRAM NX 11 speed
Brake Levers: Tektro
Brakeset: Tektro Orion 4 Piston HD-M745
Wheels/Front Hub: Shimano M525, 32h, QR
Rear Wheel: Shimano M525, 32h, QR
Rims: WTB STS i29 TCS
Summer Tires: Surly ExtraTerrestrial 26x2.5" Tubeless Ready
