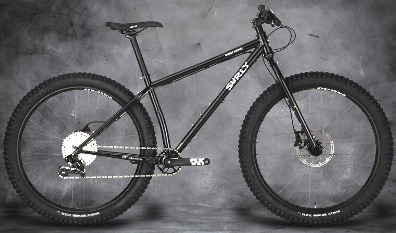

Surly Karate Monkey

Available Rental Sizes: XS (13"), M (17"), two size L (19"),  XL (21")

3 hours - $40, extra hours - $4, $3, $2, $1 . . . 24 hours - $65.  48 hours - $120.  Week - $300.

TIRES: Surly Dirt Wizard, 27-5 x 3, 60 tpi

WEIGHT:33 lbs.

FRAME:4130 Cro-Moly Steel. Custom double butted.

COMPONENTS

FORK: Rigid for size M and XL. Other sizes have Manitou Machete 120 Suspension fork.

WHEELSET:  WTB Scrapper i40 rims32h DW.Front Hub:110mm, 15mm thru-axle,Rear Hub:148mm, 12mm thru-axle.

CRANK SET:SRAM NX 30T (One of 2 in size L has a 36/22 crank)

CASSETTE:11/42

BOTTOM BRACKET: Sram Powerspline

REAR DERAILLEUR:SRAM NX

SHIFTERS: SRAM NX

BRAKES: SRAM Level

HEADSET:Cane Creek

SIZE:  19"

WEIGHT: 26.40lbs / 12.00kg

MAIN FRAME:  Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, smooth welds, hydroformed top tube, tapered 1 1/8” - 1.5” head tube, BB91 bottom bracket.

REAR TRIANGLE: Fuji A2-SL custom-butted alloy monostay w/ hydroformed chainstay, cold-forged dropout, post disc mount and replaceable hanger.

FORK: Fox 32 FLOAT 27.5 Evolution CTD w/ remte lock out, 15mm thru axle, tapered alloy steerer, remote lockout, 100mm travel.

CRANK SET:  Shimano Deore, M615 w/ integrated spindle, 38/24T.

BOTTOM BRACKET: Shimano BB91 press-fit.

F DERAILLEUR:  Shimano Deore, M616, 34.9mm.

R DERAILLEUR: Shimano Deore XT, M786 SGS Shadow, 10-speed.

SHIFTERS: Shimano Deore, M610i Rapid Fire, 10-speed.

CASSETTE:  Shimano Deore HG62, 11-36T, 10-speed.

WHEELSET:  Formula CL-81 front / Formula CL-36 rear, 32H disc hubs, Sun Inferno 23 rims.

TIRES:  Schwalbe Racing Ralph, 27.5” x 2.25” folding, 67 tpi.

BRAKE SET:  Shimano Deore M615 hydraulic, 180mm/160mm rotor.

BRAKE LEVERS: Shimano Deore M615 hydraulic.

HEADSET:  FSA 1 1/8” - 1.5”, sealed cartridge bearings.

HANDLEBAR:  Oval M250, alloy riser bar, 9° sweep, 31.8mm diameter, 710mm wide, +/- 5mm rise.

STEM:  Oval M313, 3D-forged alloy, 31.8mm clamp diameter, 6° rise.

SEAT POST:  31.6mm

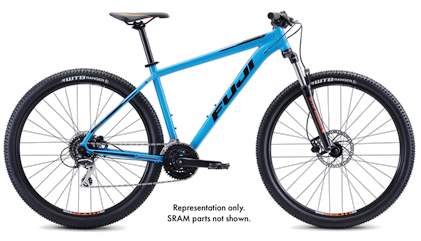

Fuji Nevada 27-5, 1.7

3 hours - $28.  Subsequent hours - $4,3,2,1 . . .  24 hours - $40.  Week - $200.

SIZES: L (19")

FRAME:  Fuji A2-SL custom-butted alloy front triangle, Fuji A1-SL alloy rear triangle

FORK:  SR Suntour SF19-XCT30-HLO-DS-29, hydraulic lockout, 100mm

BOTTOM BRACKET: Sealed cartridge bearing

CRANKSET:  Prowheel, 42/34/24T

F DERAILLEUR: Microshift FD-M20

R DERAILLEUR:  SRAM X4

SHIFTERS: SRAM X4, 3 x 8-speed

CASSETTE:  Sunrace CSM66, 11-34T

WHEELSET:  WTB SX19 rims 32H, Formula DC-20 front, DC-22 rear hubs, black spokes

TIRES:  WTB Ranger Comp, 29" x 2.25", 27tpi

BRAKESET: Tektro HD-M275, 180/160mm rotors

BRAKE LEVERS:  Tektro HD-M275

HEADSET:  1 1/8" sealed bearings

SEAT POST:  30.9mm

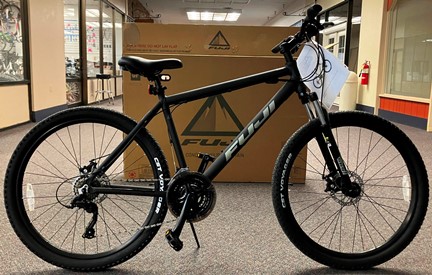

Fuji Adventure

3 hours - $23, extra hours - $4, $3, $2, $1 . . . 24 hours - $36.  Week - $175.

What makes this utilitarian mountain bike unique is its 48-38-28 crankset.  The extremely wide gear range allows the Adventure to go fast on pavement and climb steep hills.  Because the 48 tooth chain ring is as big as many road bike big chain rings, it can continue to accelerate at high speeds.  In contrast, on a more expensive mountain bike with a one-by crank and a single chain ring (32 – 36 teeth), the rider runs out of torque and the bike’s speed tops out.  On the other end of the gearing spectrum, the Adventure’s 28 tooth chain ring delivers what’s needed at slow speeds and on hills.  An expensive one dimensional one-by that’s great on punishing terrain and rocky hills is overkill for commuters and light mountain bikers.  For most people, all things considered, the Adventure is just the right bike.

COMPONENTS

CRANKSET:  Prowheel, alloy, 48/38/28T w/ chainguard

CASSETTE:  Shimano freewheel, 14-28T, 7-speed

F DERAILLEUR: Shimano Tourney, 31.8mm

R DERAILLEUR: Shimano Tourney, 7-speed

SHIFTERS:  Shimano EF41, EZ Fire, 7-speed

WHEELSET:  Fuji Aluminum rims, Formula DC-20 front, DC-31 rear disc hub, 14g black spokes

TIRES:  Vera Eos, 27.5" x 2.1", 30tpi

BRAKESET: Tektro M-280, mechanical disc, 160mm rotors

BRAKE LEVERS: Shimano EF41, 2-finger brake/shifter combo

HEADSET: 1 1/8", caged bearings

HANDLEBAR:  Steel riser bar, 25.4mm, 6 sweep, 30mm rise

STEM:  Dimension 110 mm riser.

SEATPOST: Alloy, 27.2mm

BOTTOM BRACKET: Semi-cartridge bearing

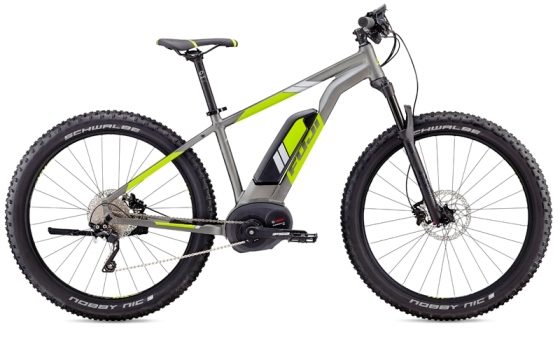

2018 Fuji E-Ambient 27.5+ 1.3

$58 - 3 hours. $4, $3, $2, $1, $1, subsequent hours.

$88 – 24 hrs (charger included).

Maximum Rider Weight: 240 lbs.

DRIVE UNIT:  Bosch Performance CX mid-motor, 250w rated power.

BATTERY:  Bosch Power Tube 500Wh w/ charger

WEIGHT: 47.5 lbs (21.54 kg)

BATTERY WEIGHT: 5.7 lbs (2.58 kg)

MOTOR WEIGHT: 8.8 lbs (3.99 kg)
